HPS-GNRD4A
On-premises 4U AI Server with Dual Intel® Xeon® 6 processor, NVIDIA Quadro RTX6000 Blackwell Max-Q GPU Compatible

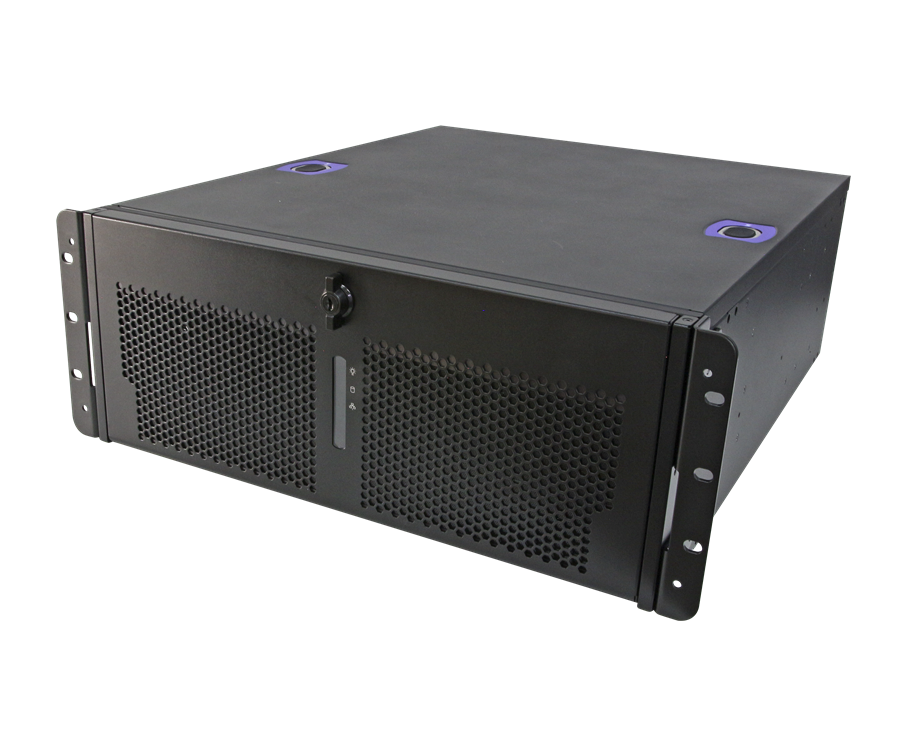

19" 4U chassis with dual Intel® Xeon® 6 processor support
5 PCIe Gen5 x16 slots support up to 3 double-wide GPU card expansions
16 DDR5 RDIMM slots, up to 4TB capacity for real-time multitasking and large-scale AI training workloads
High-speed data transmission by dual 10GbE LAN ports
IPMI 2.0 remote management and 1300W power supply ensure stable system operation

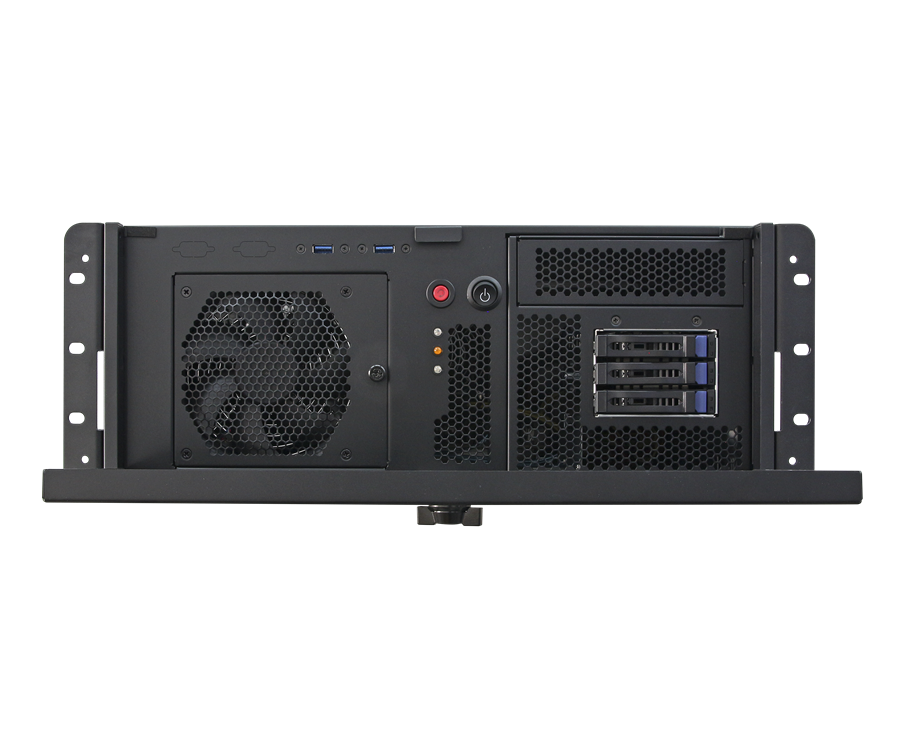

3 front accessible 2.5" drive bays and super multi DVD rewriter for flexible and secure data storage
  • Introduction
  • Specification
  • Product Introduction
    Below is the basic introduction and description of the product’s uses and other relevant information.

    Device Features

    test

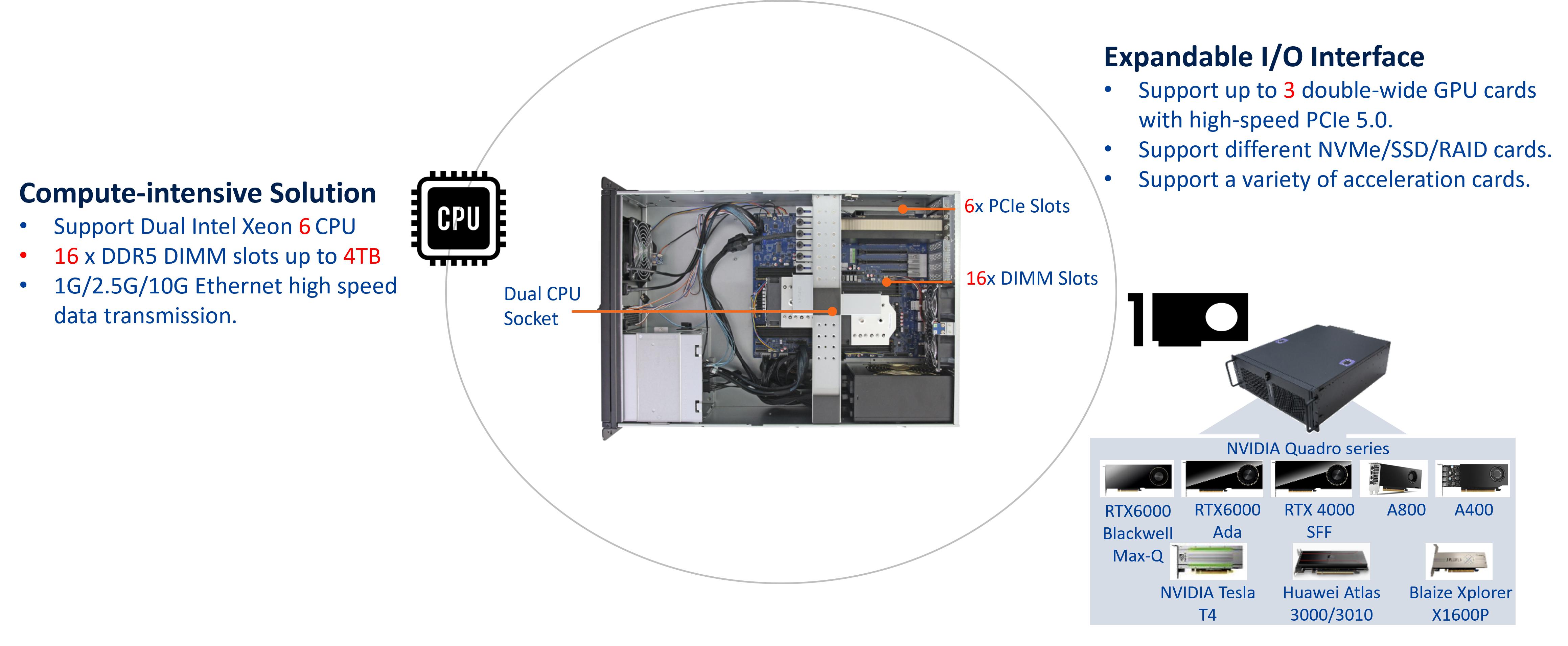

    Extensive PCIe Expansion – equipped with 5 PCIe Gen5 x16 slots and 1 PCIe Gen5 x8 slot, enabling seamless integration of multiple GPUs or high-speed accelerators


    Intel® Xeon® Scalable Processor – utilizes dual Intel® Xeon® 6 processors for compute-intensive data workloads


    DDR5 Memory Capacity – comes with 16 DDR5 slots with support up to 4.0 TB, ideal for high-throughput computation


    High-Performance Networking – features dual 10 GbE Ethernet ports for fast data transfer in high-demand environments

    Device Applications

    Genomics & Bioinformatics Workflows – with a single Xeon CPU, balanced PCIe expansion, and up to 2.0 TB of DDR5 memory, this system is well-suited for medium-scale genomics tasks such as targeted sequencing, variant annotation, and data preprocessing for medium-scale pipelines


    AI-Accelerated Medical Imaging & Analysis – designed for edge deployment, it leverages high-performance GPUs like the NVIDIA Quadro RTX A6000 Ada to run pre-trained models for real-time MRI/CT interpretation, image segmentation, and point-of-care diagnostics


    Clinical Research & Precision Medicine – delivers strong compute density in a compact footprint, enabling research teams to run predictive models, patient stratification analyses, and real-time data integration for precision healthcare without the overhead of a dual-socket platform

    Product Specification
    Expand the section to view detailed technical specifications and features of the product.

    System Information

    Processor
    Dual Intel LGA4710 Sockets support Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W each)
    System Memory
    16 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 4TB
    BIOS
    AMI UEFI BIOS
    Watchdog Timer
    System reset event 0 ~ 6553 seconds
    H/W Status Monitor
    CPU temperature
    Fan speed and voltage monitoring
    Fan speed control
    Case open detection
    TPM
    TPM 2.0 onboard
    IPMI
    IPMI 2.0 with AST 2600 BMC controller onboard
    OS Support
    Windows 11 SAC and LTSC
    Windows Server 2025
    Ubuntu 24.04 LTS or later
    Red Hat Enterprise Linux (RHEL)

    Expansion Slot

    PCIe
    5 x PCIe Gen5 x16 slots & 1 x PCIe Gen5 x8 slot
    Slot 1, PCIe 5.0 x16 from 1st CPU
    Slot 2, PCIe 5.0 x16 from 2nd CPU
    Slot 3, PCIe 5.0 x16 from 2nd CPU
    Slot 4, PCIe 5.0 x16 from 2nd CPU
    Slot 5, PCIe 5.0 x16 from 2nd CPU
    Slot 6, PCIe 5.0 x8 from 1st CPU(Slot 7 is the slot closest to CPU)

    Storage

    M.2
    1 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU 2242/2260/2280/22110 form factor
    1 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU 2242/2260/2280 form factor
    HDD/ SSD
    3 x Front accessible 2.5" storage bays

    Display

    Graphic Chipset
    AST 2600 BMC controller
    Spec. & Resolution
    1 x VGA port
    VGA: 1920 x 1200 @ 60Hz 32bpp

    Front I/O

    LED Indicator
    1 x Power status indicator
    1 x Disk activity indicator
    1 x Network activity indicator
    Power Button
    1 x Power button
    Reset Button
    1 x Reset button
    USB Port
    2 x USB 3.2 Gen1

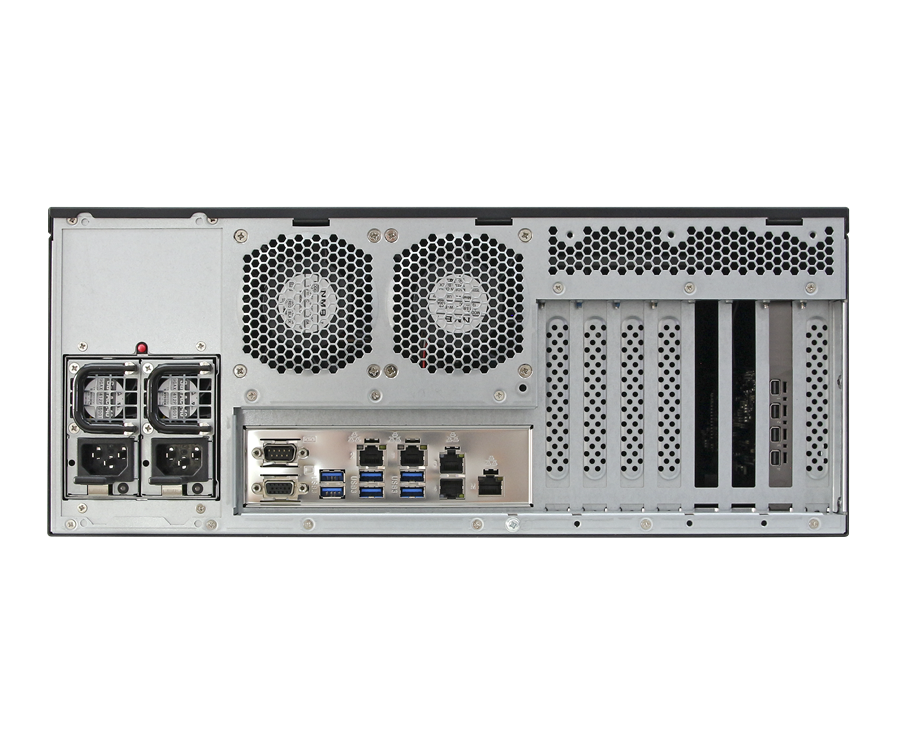

    Rear I/O

    USB Port
    6 x USB 3.2 Gen2
    LAN Port
    5 x RJ45
    MGMT port for dedicated IPMI access only
    LAN1 port for 1GbE shared with IPMI access
    LAN2 port for 1GbE
    LAN3 and 4 ports for 10GbE
    COM Port
    1 x RS232
    Video Port
    1 x VGA

    Ethernet

    LAN Chipset
    1 x Intel I210AT GbE Ethernet port shared with IPMI management port
    1 x Intel I210AT 1GbE controller
    1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet port

    Power Requirement

    Power Supply Unit
    1 x 1300W PS2 ATX PSU (Default)
    1 x 1600W CRPS (Option)

    Mechanical & Environmental

    Dimension (mm)
    19" 4U Chassis
    430(W) x 174.8(H) x 650(D)
    482.6(W) x 174.8(H) x 650(D) with ear mount
    Weight (kg)
    25.8
    Operating Temp.
    0 ~ 35°C (L6 system with 1300W ATX PSU)
    0 ~ 40°C (L6 system with 1600W CRPS)
    Operating Humidity
    35°C @95% Relative Humidity, Non-condensing
    Storage Temp.
    -40°C 24hrs IEC60068-2-1 Cold test Test: Ab
    70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca
