MAB-T660

MAB-T660 (Medical PSU)

Edge AI PC in Compact Size for Space-Constrained Medical Device, with 400W Medical PSU

INTRODUCTION

DATASHEET

GET A QUOTE

Compact and half in size easy for space-constraint scenarios, like endoscopy integration

High performance supported by 12/13th Generation Intel® Core™ i3/i5/i7/i9 Processors

Two half-height PCIe slot (1x PCIe x16 or 2 x PCI-e x 8 via riser card) for flexible expansions

Support 3 simultaneous high-resolution displays by 2 x DP++, 1 x HDMI 2.1b

Instant data transmission by 4 high-speed 2.5 GbE LAN ports

RAID 0, 1 support for data backup of critical clinical data

Up to 10 USB ports (USB 3.2 Gen2 incl.) for versatile peripheral integration

Specification

Ordering Information

Document

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

12/13th Generation Intel® Core™ i3/i5/i7/i9 Processors

Chipset

Intel® R680E Chipset

System Memory

2 x SODIMM Up to 64GB Dual Channel DDR5 4800MHz
Non-ECC DRAM support

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

RAID

Support RAID 0, 1

Watchdog Timer

H/W Reset, 5~255 seconds/5~255 minutes

H/W Status Monitor

CPU temperature monitoring,
Voltages monitoring
CPU fan speed control

OS Support

Win 10, Win 11, Linux

Expansion Slot

PCIe

1 x PCI-e x 16 Gen 5 or 2 x PCI-e x 8 by switch (from CPU)
*Support low profile PCIe cards

M.2

1 x M.2 (2230) E-Key, support Wi-Fi module with PCIe x 2 Gen 3 & USB 2.0
1 x M.2 (2242/2280) M-Key, support PCI-e x 4 Gen 4 SSD (top side)

Storage

HDD/ SSD

1 x 2.5” SATAIII HDD/SSD Drive

Display

Graphic Chipset

Intel® UHD Graphics 770

Spec. & Resolution

2 x DP++: 4096 x 2304@60Hz / 5120 x 3200@60Hz
1 x HDMI 2.1b (supported with LSPCON): 8K@60Hz

Multiple Display

Support 3 independent display

Front I/O

LED Indicator

1 x Power Button (w/ LED indicator)

USB Port

2 x USB 2.0

Rear I/O

USB Port

4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1

LAN Port

4 x 2.5GbE by RJ-45

HDMI

1 x HDMI 2.1b

2 x DP++

Audio

1 x Mic-in, 1 x Line-out

Antenna

2 x Antenna

Power Input

AC Input

Audio

Audio Codec

RealTek ALC888S Audio Codec

Audio Amplifier

RealTek ALC105 Stereo Class-D 2W4Ω

Ethernet

LAN Chipset

4 x Intel® i226LM 2.5 GbE controller

Power Requirement

Power Supply Unit

400W Medical 1U ATX Power Supply

Power Mode

ATX

Power Input

100-240V AC

Certification

Safety

ITE CE/FCC Class A

Mechanical & Environmental

Dimension (mm)

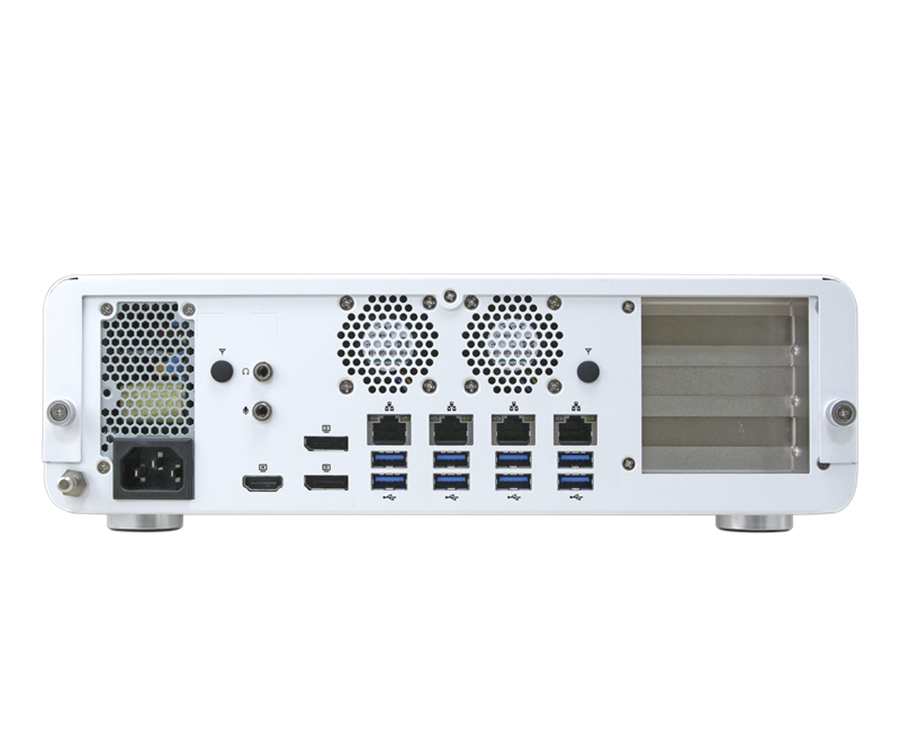

315 x 272 x 92

Weight (kg)

4.8

Color

White

Operating Temp.

0°C~35°C (32˚F ~ 95˚F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Storage Temp.

-30C°~70C° (-22°F ~ 158°F)

Drop Test

Package drop test:One corner, three edges, six faces
ISTA 2A, IEC-60068-2-32

Vibration Test

Operating with SSD : 0.5 Grms, IEC 60068-2-64, 5 ~ 500Hz, 0.5hr/axis

Shock Test

With SSD : 10 Grms, IEC 60068-2-27, half sine, 11ms

Construction

Metal + Plastic

Ordering Information

Options

Ordering Information

CPU, memory, storage, and operating system bundled on request. Please contact your sales representative for more information.

Part No.

Description

MAB-T660-A1-1R

Barebone system with mini-ITX EMX-R680P motherboard, 400W medical PSU, 65W CPU cooler, 1 x PCIe x16 expansion, white color

Options

The medical certification is granted based on the barebone system configuration. Any additional cards or modules may require recertification.

Part No.

Description

RCC-GPU-RTXADA-04R

Graphic Card, NVIDIA RTX A1000 / 8GB

RCC-GPU-RTXADA-03R

Graphic Card, NVIDIA RTX 2000 ADA / 16GB (ATX / LP Bracket)

RCC-GPU-RTXADA-02R

Graphic Card, NVIDIA RTX 4000 SFF ADA / 20GB (ATX / LP Bracket)

RCC-CAP-PCIE-01R

Yuan SC710N2-L HDMI 2.0 Capture Card, 4K resolution, 2 x HDMI in, PCIe x4 interface

RCC-CAP-PCIE-04R

Yuan SC400N2-L HDMI Capture Card, 1080P resolution, 2 x HDMI in, PCIe x4 interface

RCC-WIFI-PCIE-01R

WiFi set ENL-5400PCI, WiFi 6E with Bluetooth 5.3, PCIe adapter

RCC-WIFI-M2BT-01R

ACC-M2-WIFIBT-19R, WiFi module, WiFi 6E with kits & bracket

RCC-POE-PCIE-01R

SI350-4RJ-POE, POE Card, Intel I210AT, 1 x RJ-45, 1 Gbps POE, PCIe x1 interface

RCC-LAN-PCIE-01R

D82574-1RJ, LAN Card, Intel 82574L, 1 x RJ-45, 1 Gbps LAN, PCIe x1 interface

RCC-LAN-PCIE-02R

SI350AM2-2RJ(A), LAN Card, Intel I350AM2, 2 x RJ-45, 1 Gbps LAN, PCIe x4 interface

LAN

Design Document

Manual

Other Driver

LAN

No.

Title

Description

Operating System

Release Date

Download

MAB-T600_71841_LAN

Windows 11 64bit Windows 10 64bit

2024.02.16

Design Document

No.

Title

Description

Operating System

Release Date

Download

MAB-T600_Drawing

2024.07.15

Manual

No.

Title

Description

Operating System

Release Date

Download

MAB-T600 _Manual

2024.07.15

Other Driver

No.

Title

Description

Operating System

Release Date

Download

Intel(R)_DTT_1.0.10705.25772

Windows 11 64bit Windows 10 64bit

2024.02.16
