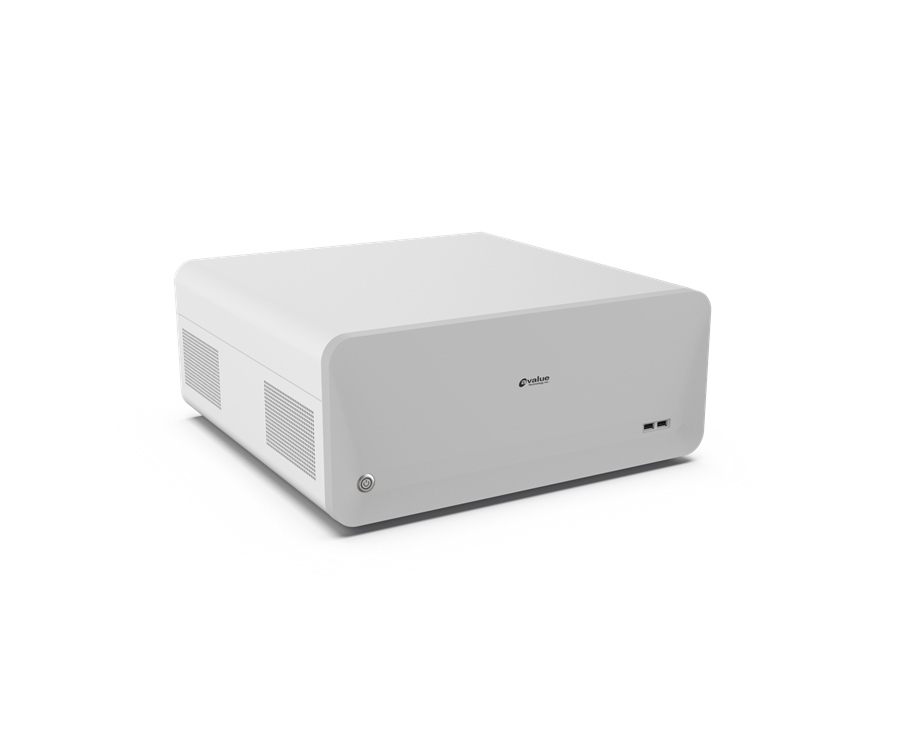

MAB-T690

GPU-Ready Box PC for Real-Time OR Video Streaming & Analysis

INTRODUCTION

DATASHEET

GET A QUOTE

High performance supported by 12/13/14th Generation Intel® Core i3/i5/i7/i9 processors

Up to 5 PCIe slot (1x PCIe x16 incl.) for flexible expansions

Support3 high-resolution displays by 1 x DP++, 1 x HDMI 1.4b

Instant data transmission by 4x Intel 2.5 GbE LAN ports

Up to 8 USB ports (USB 3.2 Gen2) for versatile peripheral integration

Optional DVD ROM option & RAID design for secure data backup

Introduction

Specification

Ordering Information

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Intel® 12/13/14th Gen, Alder Lake/Raptor Lake/Raptor Lake-Refresh/Bartlett Lake-S Core™ i9/i7/i5/i3 Processors, supports LGA 1700 CPU Up to 125W Max

Chipset

Intel® R680E Chipset

System Memory

4 x 288-pin DDR5 UDIMM support up to 192GB, optional ECC support (CPU dependent)

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

RAID

Support RAID 0, 1, 5, 10

TPM

TPM 2.0

OS Support

Win 10, Win 11, Linux

Expansion Slot

PCIe

1x PCIe x16 Gen5 or 2x PCIe x8 Gen5
2x PCIe x4 Gen4
1x PCIe x4 Gen3
1x PCIe x2 Gen3

Other

1x DVD ROM (black, optional)

Storage

Solid State Drive

4 x 2.5” drive bay(optional: 3.5”)

M.2

2 x M.2 NVMe Key M 2242/2280/22110 (PCIe Gen4x4, no SATA)

Display

Graphic Chipset

Intel® Integrated Graphics with up to 32 EU

Spec. & Resolution

2 x DP (DP1.4a): Max: 7680 x 4320@60 Hz
1 x HDMI: HDMI 2.1b, max resolution 4096x2160@60Hz (with HDR)

Front I/O

Power Button

1 x Power Button (w/ LED indicator)

USB Port

2 x USB 2.0

Rear I/O

USB Port

8 x USB3.2 Gen 2

LAN Port

4 x 2.5GbE RJ45

COM Port

1 x DB9 Connector at IO support RS-232; optional up to 5 RS-232 COM port (I/O from PCIe slot)

HDMI

1 x HDMI 2.1b

2 x DP 1.4a

Power Input

AC Input

Audio

Audio Codec

Realtek HD Audio Codec

Audio Amplifier

TI TPA3113D2 Class-D 2 x 6W 8Ω Amplifier

Ethernet

LAN Chipset

2 x Intel® i226-LM 2.5G Gigabit Controller
2 x Intel® i226V 2.5G Gigabit Controller

Power Requirement

Power Supply Unit

IT grade 1000W (Default)
Medical grade 1000W (Optional)

Power Mode

AT/ATX mode (default: ATX mode)

Power Input

100-240V AC

Certification

Safety

IT CE/FCC

Mechanical & Environmental

Dimension (mm)

437 x 433 x 189.2

Weight (kg)

Color

White

Operating Temp.

40°C @ 95% Relative Humidity, Non-condensing

Storage Temp.

-20°C ~ 60°C(-4°F ~ 140°F)

Ordering Information

CPU, memory, storage, and operating system bundled on request. Please contact your sales representative for more information.

Part No.

Description

MAB-T690-A1-R1

Barebone system with ATX EAX-R680BP motherboard, 1000W PSU, 125W TDP, 1 x Gen5 PCIe x16, 2 x Gen4 PCIe x4, 1 x Gen3 PCIe x4, 1 x Gen3 PCIe x2, white color
