RCC-CAR-HGD-02R

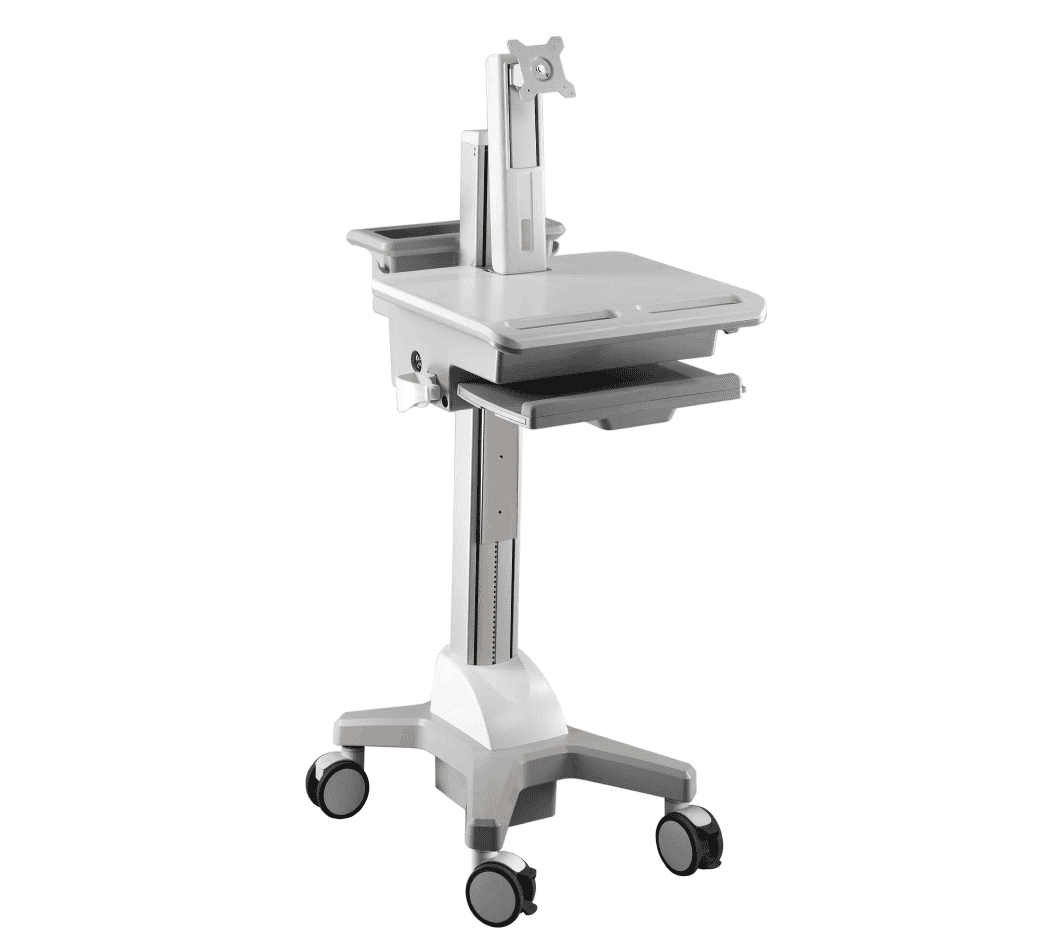

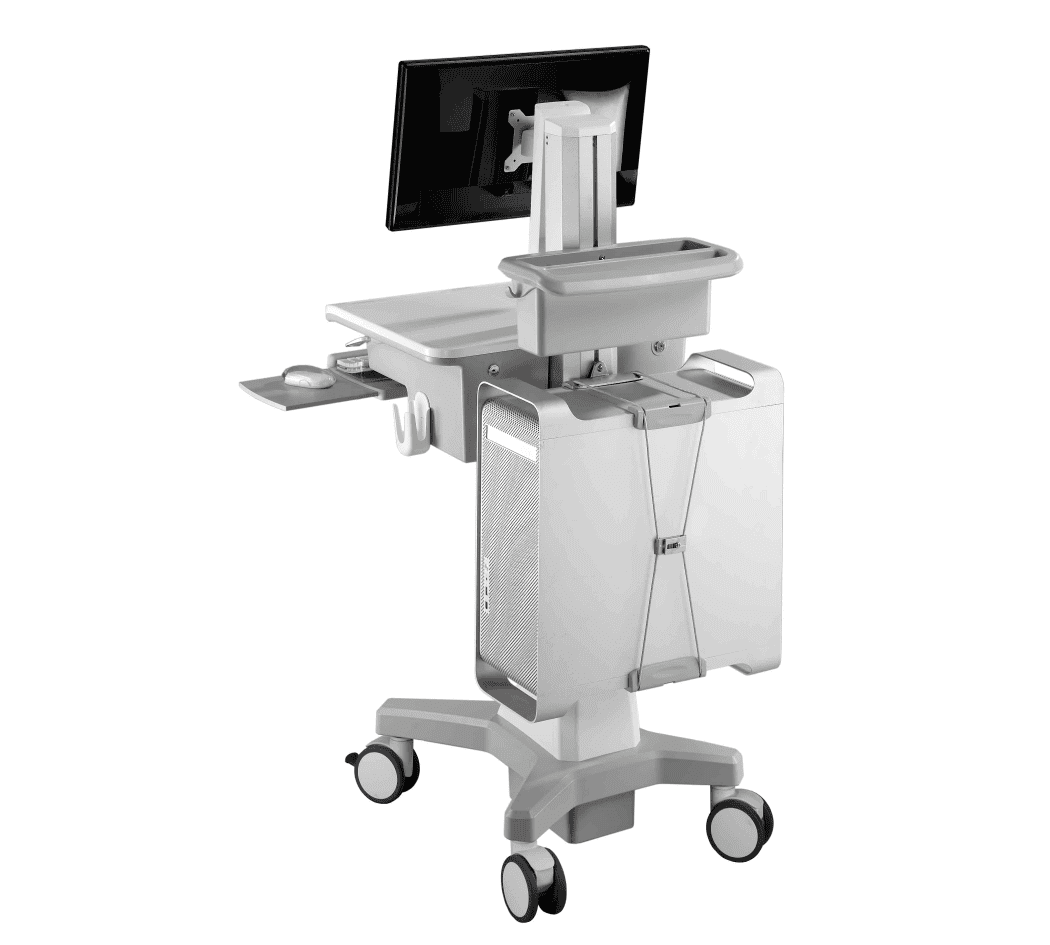

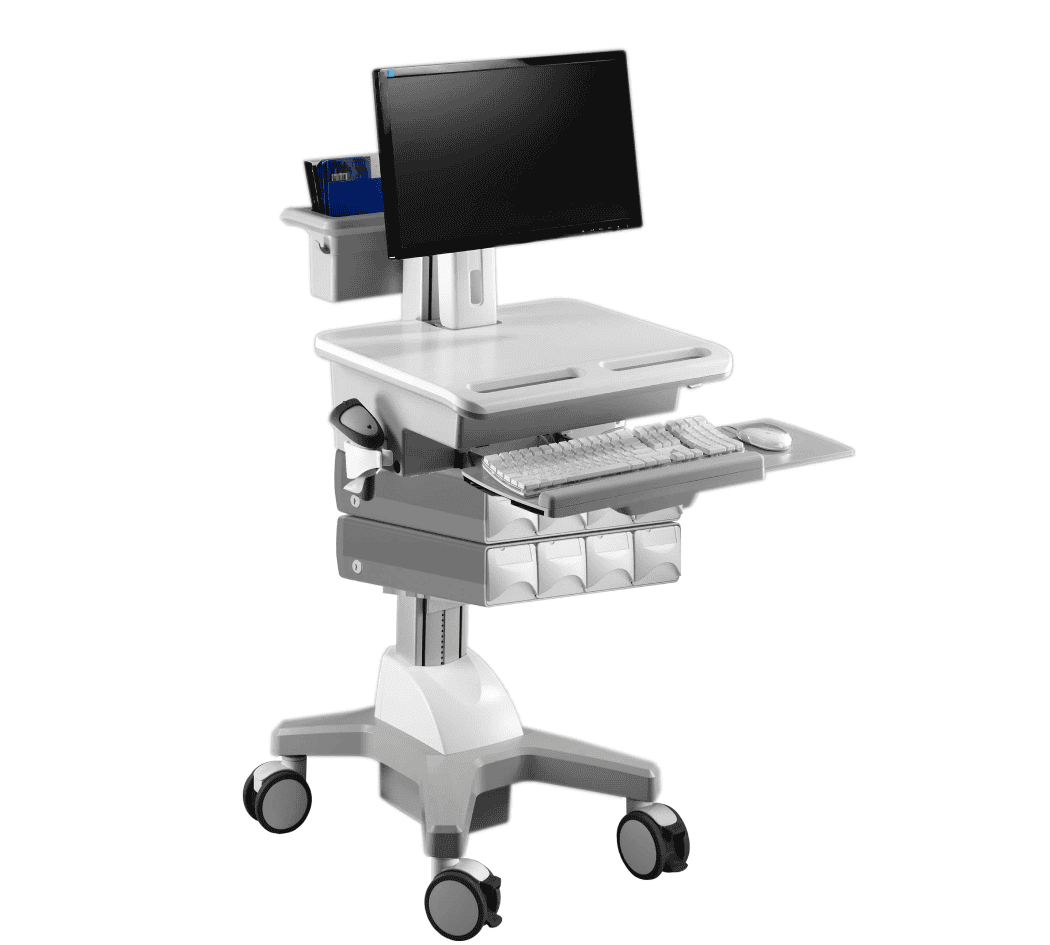

Medical Cart supports up to 27" display (CNH02)

INTRODUCTION

GET A QUOTE

Specification

Document

Product Specification

Expand the section to view detailed technical specifications and features of the product.

Complete System

Overall Load Capacity

15 kg

Net Weight

31 kg

Packaged Dimension

W1420 x D715 x H260 mm

Display System

Hinge Module Tilt

-5° ~ +25°

Hinge Module Pivot

360°

Hinge Module User Torque Adjust

Available

Display Support Mounting Pattern

100x100mm/75x75mm

Display Type

Single Monitor

Panel Size Support

≦27''

Display Support Weight Load

2 ~ 8 kg

Height Adjust Range

130 mm

Tension Torque Adjust

Yes

Cable Management

Yes

Working Space

Desk

Open Workspace

Dimension

517 x 261 mm ( 20.35" x10.28" )

Load

7.5 kg

Protection Skidproof at edge

Yes

Protection Rear Handle

Yes

Protection Surface Coating

Yes

Storage & Inputs

Compartment Max. Effective Dimension

W425 x D325 x H90 mm (16.73" x12.8" x3.54" )

Compartment Key Lock

Yes

Keyboard Tray Max. Effective Dimension

449 x 207 mm ( 17.68" X8.15" )

Keyboard Tray Max. Height from Desk Base

41.5 mm ( 1.63" )

Keyboard Tray Wrist Comfort

Yes

Keyboard Tray Tilt

Max. 12° (backward)

Mouse Pad Max. Working Dimension

217 x 213 mm ( 8.54" x 8.39" )

Mouse Pad Right-Left Slide in-&-out

Yes

Mouse Holder

Yes

Scanner Holder

Yes

Storage Bin

Yes

External CPU Holder

Yes

Base System

Caster No.

Caster Locking/ Brake

Front 2

Caster Low Noise

Yes

Lift Handle

Yes

Height Adjust Range

500 mm ( 19.7" )

Tension Torque Adjust

Yes

Environmental

RoHS/REACH Compliance

Yes

Ordering Information

RCC-CAR-HGD-DH-01R
Storage Basket with Handle
RCC-CAR-HGD-DR-01R
Standard drawer and metal adapter for Medical Cart
RCC-CAR-HGD-DR-02R
4 bay drawer and metal adapter for Medical Cart
RCC-CAR-HGD-CH-01R
Camera holder
RCC-CAR-HGD-BR-01R
Bracket for Alcohol Hand Dispenser
RCC-ARM-HGD-01R
A-frame bedside arm including wall box for 8 kg AIO default
RCC-ARM-HGD-02R
Bedside arm including wall box support 6~12 kg

Design Document

Manual

Design Document

No.

Title

Description

Operating System

Release Date

Download

RCC-CAR-HGD-02R(CNH02)_Drawing

2024.07.18

Manual

No.

Title

Description

Operating System

Release Date

Download

RCC-CAR-HGD-02R(CNH02)_Manual

2024.07.18
