Camera
Image Sensor
1/2.8" 4K Exmor CMOS
Power Frequencies
50Hz/60Hz
Image Processing
Noise Reduction (2D / 3D), Flip, Mirror,WDR,BLC
Camera Control - Protocols
VISCA (RS-232 / IP), PELCO-D & PELCO-P (RS-232), CGI (IP)
Preset Positions
10 (IR), 256 (RS-232 / IP)
Preset Speed
Pan: 200°/sec, Tilt: 200°/sec
Pan / Tilt Speed (Manual)
Pan: 0.1° to 100°/sec, Tilt: 0.1° to 100°/sec
Pan / Tilt Angles
Pan: ±170°, Tilt: +90° / -35°
Minimum Working Distance
Wide: 0.01 m, Tele: 1.2 m
Aperture (Iris)
F = 1.6 (Wide) to 4.7 (Tele)
Focal Length
f = 4.3 mm (Wide) to 129 mm (Tele)
Optical Zoom
30X
White Balance
Auto, Manual
Exposure Control
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
Shutter Speed
1/1 to 1/10,000 sec
Viewing Angles
DFOV: 75.5° (Wide) to 3.1° (Tele)
HFOV: 68.0° (Wide) to 2.7° (Tele)
VFOV: 41.7° (Wide) to 1.5° (Tele)
HFOV: 68.0° (Wide) to 2.7° (Tele)
VFOV: 41.7° (Wide) to 1.5° (Tele)
Gain
Auto, Manual
S/N Ratio
≥ 50dB
Minimum Illumination
0.7 lux (IRE50, F1.6, 30fps)
Output Resolutions
4K/30 (IP/UVC only), 1080p/60, 1080p/59.94, 1080p/50, 1080p/30,
1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50, 720p/30
1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50, 720p/30
Effective Picture Elements
8 Megapixels

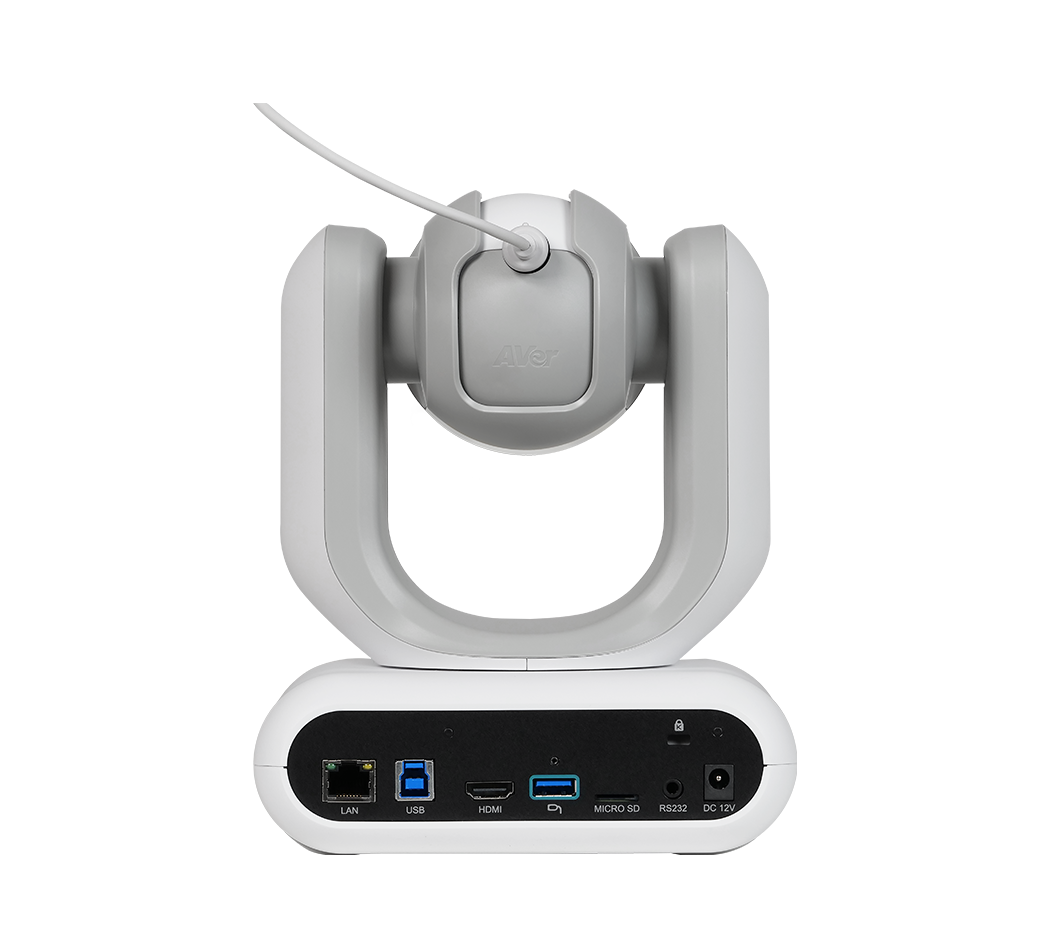

Interface
Video Outputs
HDMI, IP, USB
Audio Outputs
HDMI, IP, USB
General
Power Requirement
100-240V AC~ to 12V DC /3.34A
Operating Conditions
Temperature: 0°C to +35°C; Humidity: 20% to 80%
Storage Conditions
Temperature: -20°C to +60°C; Humidity: 20% to 95%
Dimensions (W x H x D)
168 x 205 x 126 mm
Net Weight
1.95kg
Application
Indoor
Security
Kensington Slot
Remote Control
Infrared
Power Consumption
36W
Tally Lamp
N/A
Speaker
Embedded Speaker
Yes
SPL
77 dB SPL (1W; 1m)
Maximum SPL
90 dB SPL at 0.5 meter
Microphone
Built-in Microphone
2 (Omnidirectional)
AI Noise Reduction
Yes
Pickup Range
5 m
Sensitivity
-33 dBFS
Frequency Response
20 Hz to 2KHz
Maximum SPL
133 dB SPL at 0.5 m
Loop Recording
Resolution
Up to 4K
Length of Video
5 minutes
Recording Modes
Loop & continuous
Loop Mechanism
Wipe the oldest clip
IP Streaming
Resolution
4K, 30fps
Network Video Compress Formats
H.264, H.265
Maximum Frame Rate
4K, 30fps
Network Interface
10 / 100 / 1000 Base-T
Multi-Stream Capability
2 (RTSP / Web Page), 4K 30fps (max.)
Network Protocols
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP,
RTMP, VISCA over IP
RTMP, VISCA over IP
USB
Connector
USB 3.0
Video Formats
MJPEG, YUY2
USB Video Class (UVC)
UVC1.1
USB Audio Class (UAC)
UAC1.0
Audio Formats
PCM
Software Tools
IP Search and Configuration Tool
Support Windows® 7 or later
Warranty
Camera
3 Years
Accessories
1 Year
Package Contents
Package Contents
Camera, Remote Control, Power Adapter, Power Cord, Screws(x2), USB Cable, Quick Start Guide
