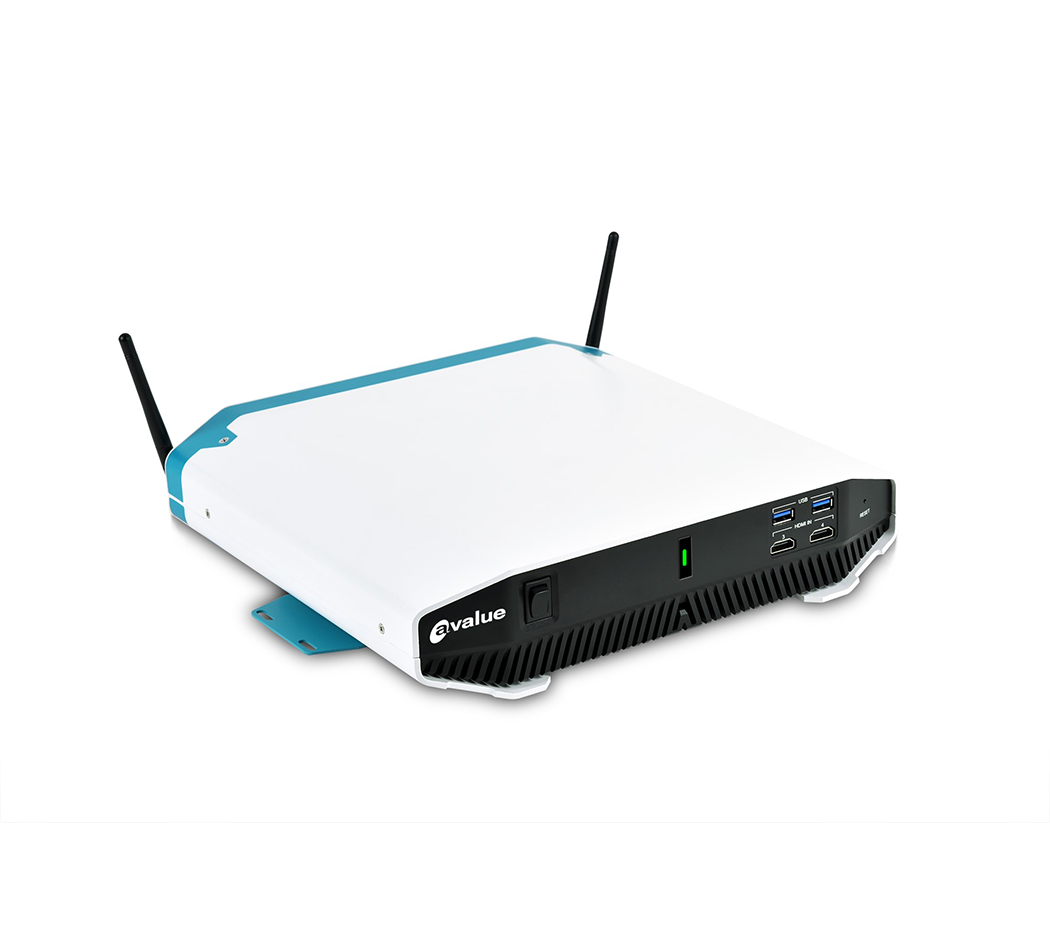

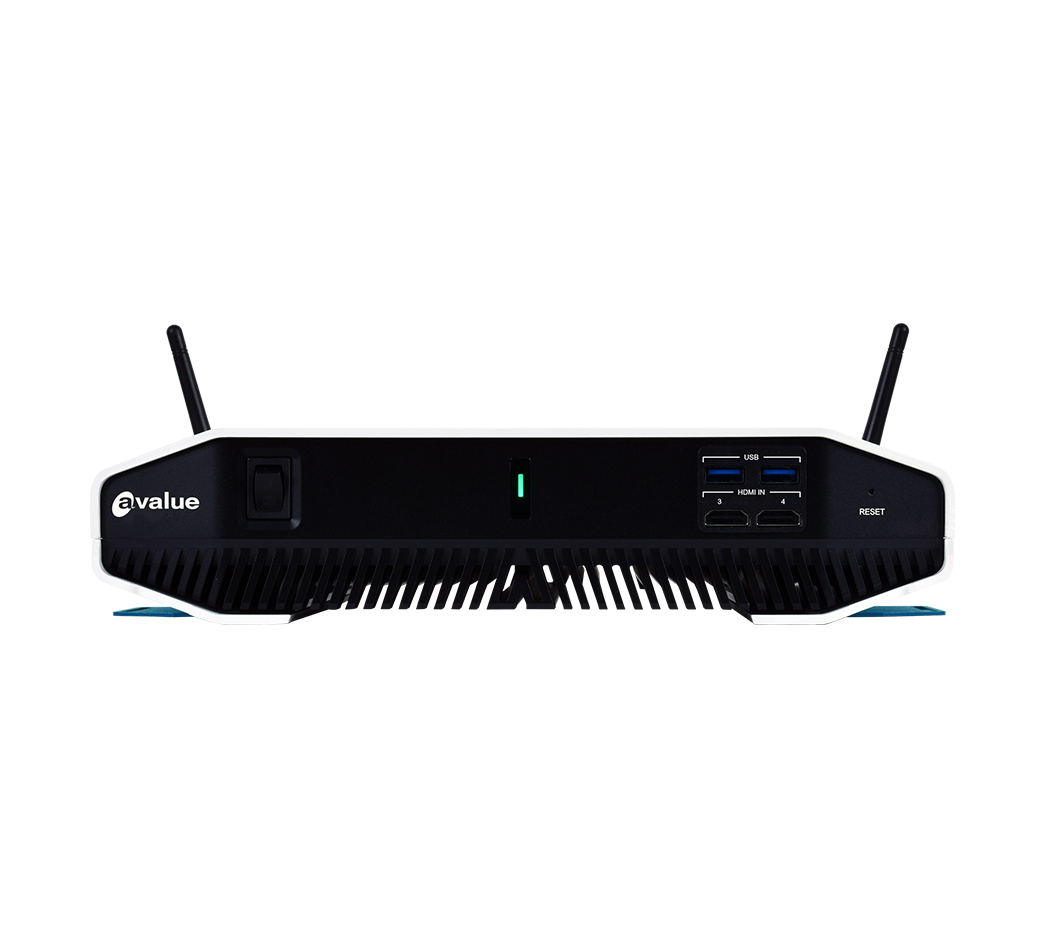

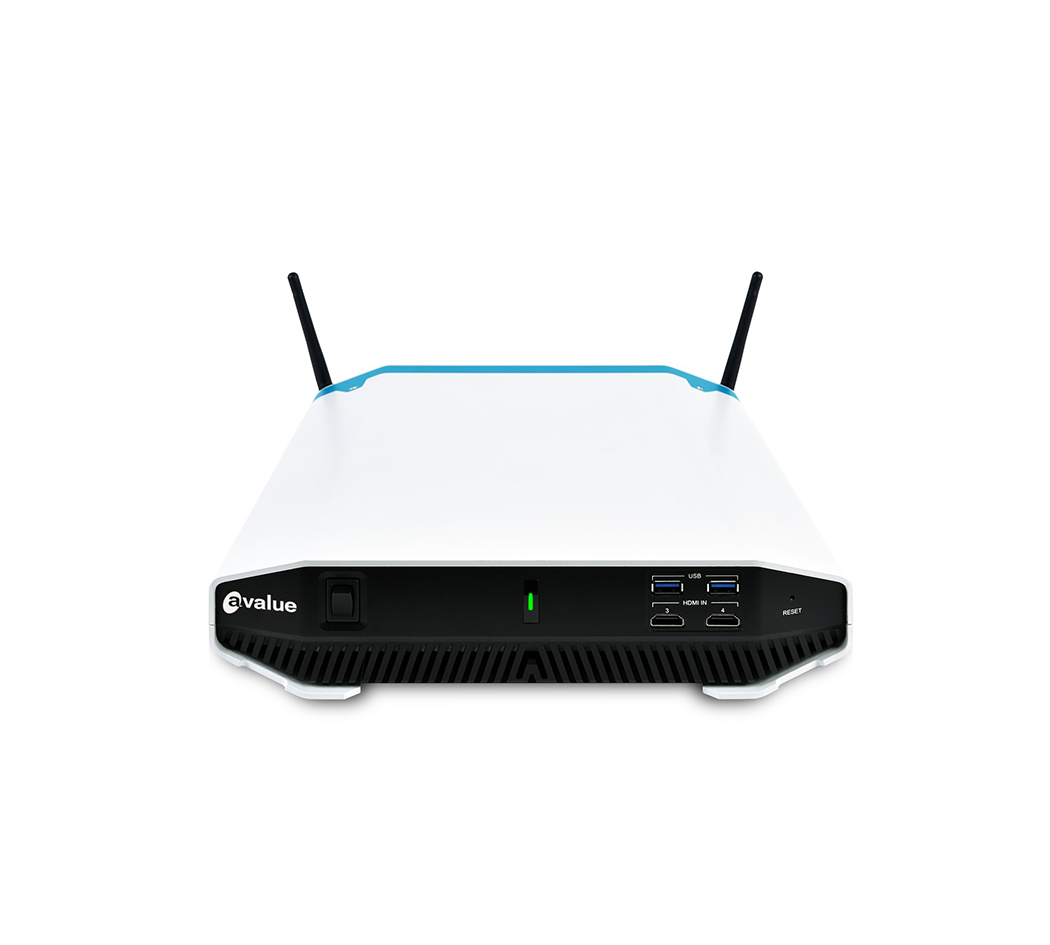

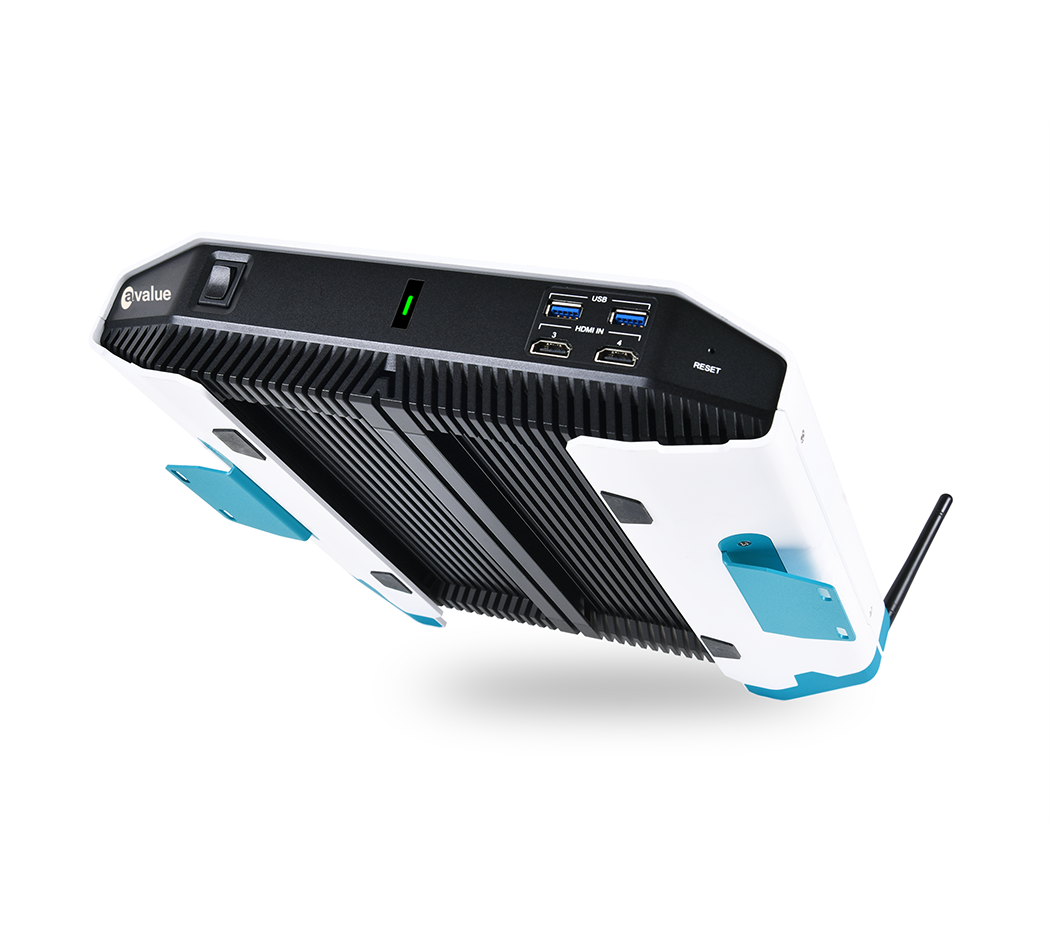

Video Manager

MED-VPR-8430

Multi-viewer with Streaming Solution and Stand-alone PC-based System for Video Capturing

INTRODUCTION

DATASHEET

GET A QUOTE

UHD+ 4K@60Hz video from medical devices can be recorded to the built in SSD storage (downscaled to 1080p@60Hz)

Intel Atom processor based PC combined with Pro-AV streaming functionality

Supports power-isolated HDMI, RS-232, and, LAN ports

Includes TPM 2.0 (Trusted Platform Module) for industry standard hardware based security

Records using the H.264 & H.265 codecs to offer the highest quality video recording possible while maintaining optimal file sizes

Included CYP App provides support for easy video and audio configuration

Supports video source previewing

Medical grade design fulfills medical application compliance requirements

Specification

Document

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

System Memory

Intel Elkhart Lake x6425E 2.0Ghz (Boost 3.0Ghz)
DDR4-16GB

Storage

2.5 Inch SATA SSD 1TB
M.2 SATA SSD (Expandable)

Interfaces

Input Port

4 HDMI (Type-A)
8 Trigger (10-pin terminal block)
2 Analog Stereo (3.5mm)

Output Port

2 HDMI (Type-A)
1 HDBaseT (RJ-45)
1 Analog Stereo (3.5mm)

Bi-directional Port

1 GbE LAN (RJ-45)
1 GbE LAN (RJ-45) with 4KV isolation

Control I/O

1 UART (RX/TX only) (3.5mm)
1 RS-232 (DB-9) with 4KV isolation
3 USB2.0 (Type-A)
1 USB2.0 (Type-A) with 4KV isolation (12MB/Bits)
2 USB3.0 (Type-A)

Video

HDMI Compliance

HDMI 2.0 (DVI 1.0)

HDCP Compliance

Input:2.0b Output: 2.2

Input Signal Types

4096×2160p@60 8-bit YUV 4:4:4

Output Signal Types

4096×2160p@60 8-bit YUV 4:4:4

Maximum Input

HDMI: 4096×2160p@60

Maximum Output

HDMI: 4096×2160p@60
HDBaseT: 4096×2160p@60 (4:2:0)
Recording: 1920×1080p@60
HDMI: 1080p@60

Audio

HDMI

LPCM 7.1

Line In

2 Vrms
S/N Ratio: > 80dB (1kHz with 0dBFS)

Mic In

2 Vrms
S/N Ratio: > 80dB (1kHz with 0dBFS)

Line Out

2 Vrms
S/N Ratio: > 80dB (1kHz with 0dBFS)

Power Requirement

DC Input

24V/4.17A DC

Certification

Certification Information

CE, FCC Part 18B Compliant
IEC/EN60601-1 Compliant
IEC/EN60601-1-2 Compliant

Mechanical & Environmental

Dimension (mm)

296 ×296 ×67 [Case Only]
318 ×316 ×67 [All Inclusive]

Weight (kg)

4.3

Design Document

Manual

Design Document

No.

Title

Description

Operating System

Release Date

Download

MED-VPR-8430 Drawing

2024.08.30

Manual

No.

Title

Description

Operating System

Release Date

Download

MED-VPR-8430_Ｍanual

2024.09.30
